BOG Heater bypass and outlet lines mixing flow CFD study for Damit Worley Parsons Engineering

  • by

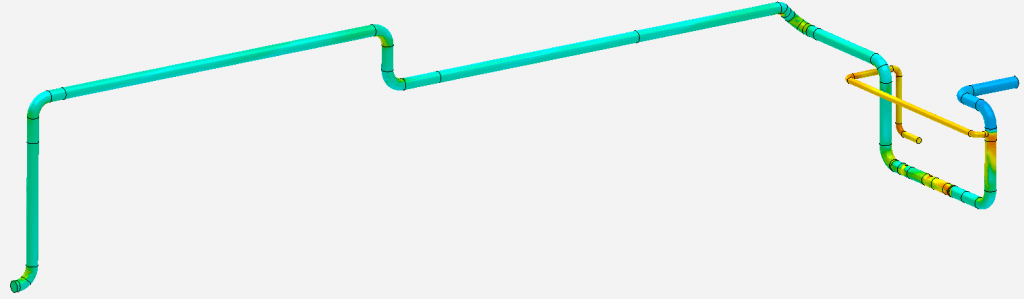

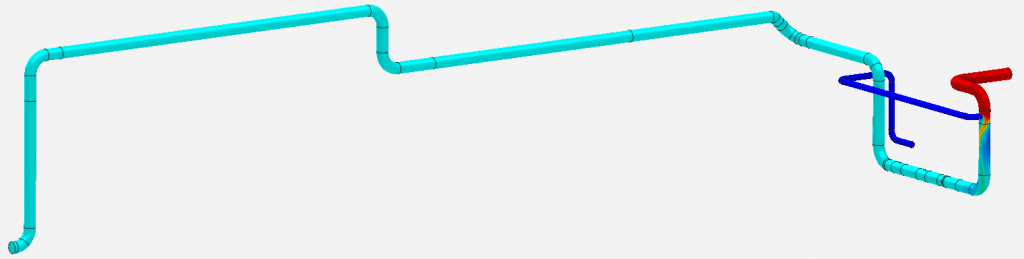

Damit Worley Parsons requested a CFD study to determine the required mixing length for achieving a uniform temperature after gas mixing at the Boil-Off-Gas (BOG) Compressor Discharge Heater bypass and its outlet lines.

The aim of this study is to determine an appropriate location for temperature sensors when the uniform temperature has been reached. Three cases were considered for this simulation:
– Case 1: Minimum bypass flow case;
– Case 2: Normal bypass flow case; and
– Case 3: Maximum bypass flow case
